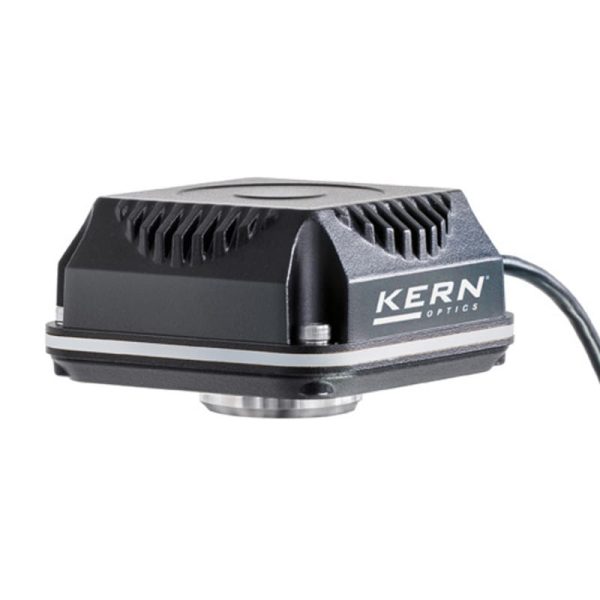

KERN Microscope Camera ODC
The KERN Microscope Camera ODC is the ideal solution for measurements, counting, documentation, archiving, and image processing. Thanks to its versatility, it is also suitable for demanding applications such as dark field, phase contrast and fluorescence imaging. It connects easily to microscopes as well as laptops or PCs via a USB cable, providing stable image performance through state-of-the-art CMOS technology. The included multilingual Microscope VIS software optimises workflow and enables precise and easy handling.
Product Details
- KERN Microscope Camera ODC
- For measurements, counting, documentation, archiving and image processing
- Also suitable for more demanding applications*
- Universally applicable cameras for various fields
- Connectable via USB cable to the microscope or laptop/PC

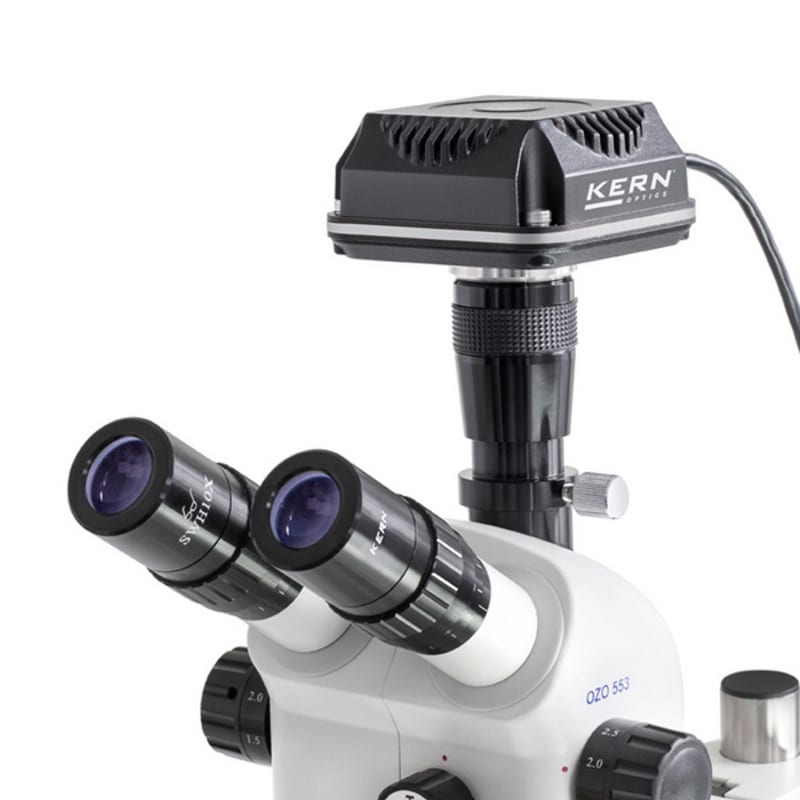

- Also compatible with KERN microscopes with C-Mount adapter
- Power supply via USB cable
- No additional power source required
- Optimal synchronization
- Stable image performance thanks to CMOS technology
- Multilingual Microscope VIS software facilitates workflows
- Including 2-metre long USB cable
- Operating systems: Win XP, Vista 7, 8, 10 and Linux
- Color/Monochrome: Color
- Dimensions: 80 x 80 x 45 mm
- Weight: approx. 0.60 kg
Ordering Information
| Model | Resolution | Interface | FPS | Sensor Size |
| 825 | 5.1 MP | USB 2.0 | 6.8-55 | 1/2.5″ |
| 831 | 3.1 MP | USB 3.0 | 27.3-53.3 | 1/3″ |
| 832 | 5.1 MP | USB 3.0 | 14.2-101.2 | 1/2.5″ |
Delivery Contents
- Camera ODC 825/831/832
- Multilingual camera software
- USB cable
- Diverse eyepiece adapters
- Object micrometer for software calibration
*In dark field, phase contrast and fluorescence applications
