Bresser Researcher Trino Transmitted Light Microscope

Bresser Researcher Trino

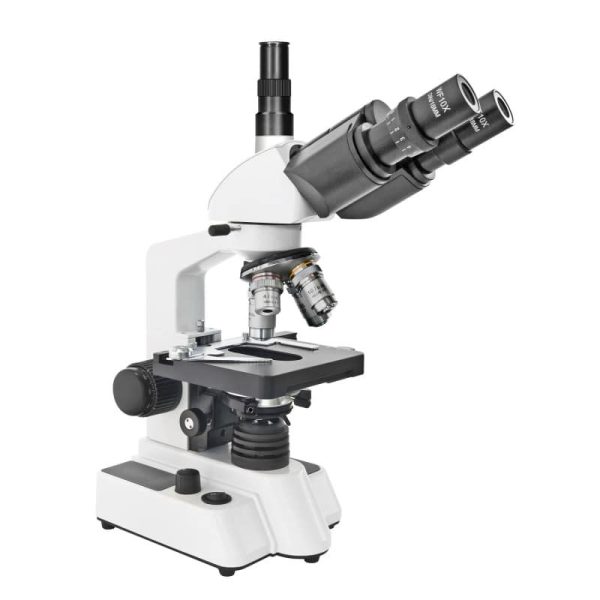

The Bresser Researcher Trino is a high-quality trinocular microscope for use with both eyes while simultaneously connecting a camera. As a result, you can examine specimens and document them at the same time! The microscope is equipped with adjustable eye distance as well as one-sided dioptre compensation. Additionally, the examined object can be positioned with extreme precision, thanks to the coaxial cross table.

The microscope with 4 objectives allows for up to 1000x magnification. The images are depicted with the Researcher Trino are particularly high-contrast, which means that it can be used to examine blood cells, bacteria, parasites and tissue samples.

If you want to capture images and videos, we recommend the Bresser MikroCam for uncomplicated use. In combination with the Bresser reduction lens 0.5x, you can adjust it to the ocular focus without a problem.

Product Details

• Bresser Researcher Trino
• Transmitted light microscope/ trinocular

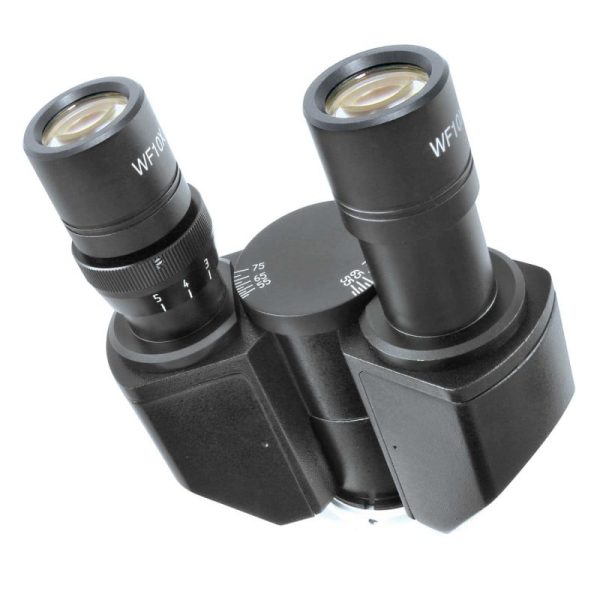

• 1 pair of DIN oculars WF 10x
• Eyepiece diameter: 23.2 mm
• Can be connected to a camera or a PC ocular
• Adjustable eye distance
• One-sided dioptre adjustment
• 40x and 100x objectives are retractable
• Illumination. LED, dimmable
• Abbe condenser with iris diaphragm (centrable & adjustable height)

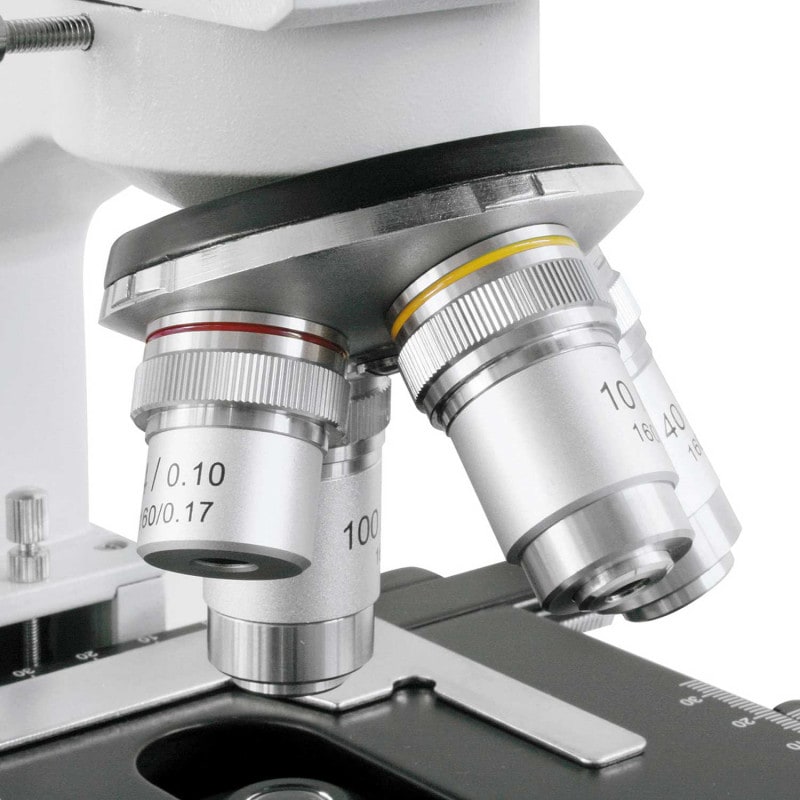

• 4 objectives
• Objective magnifications: 4x, 10x, 40x, 100x
• Suitable for oil immersion microscopy
• Coaxial cross table
• With coarse and fine focus
• Mains connection
• Dimensions (L x W x H): 28 cm x 17.5 cm x 30 cm
• Weight; 3.8 kg

Delivery Contents

• Trinocular microscope
• 2 DIN oculars WF 10x / diameter; 23 mm
• 4 DIN objectives: 4x/0.1, 10x/0.25, 40x/0.65, 100x/1.25 oil
• Condenser
• Cross table with Nonius scale
• Immersion oil
