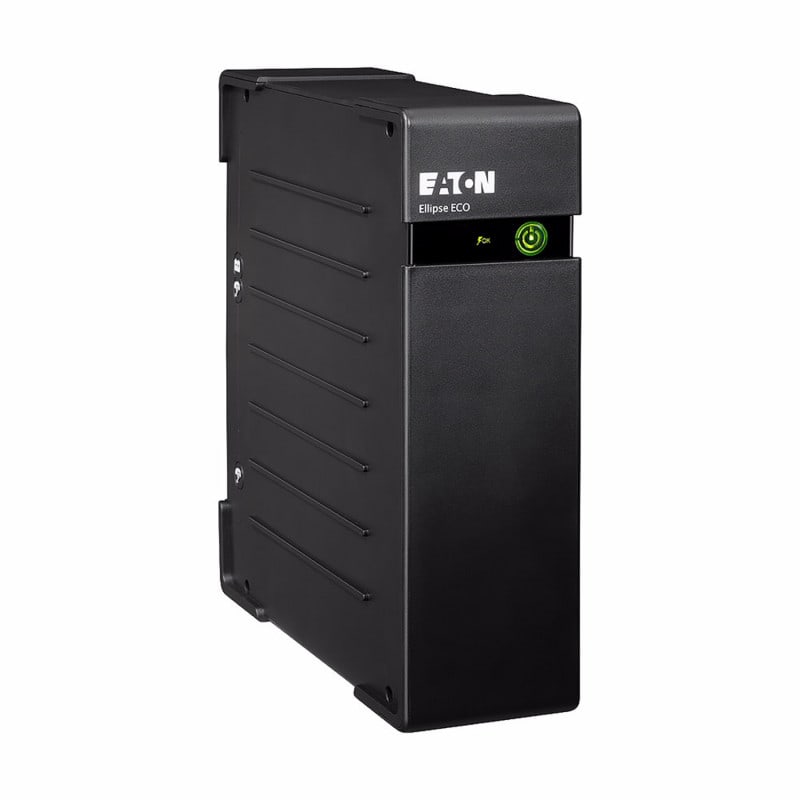

Eaton Ellipse ECO UPS – EL650DIN
The slim-line and free-standing Eaton Ellipse ECO UPS – EL650DIN is an uninterruptible power supply system that ensures a secure power supply for computers and their peripherals. It can be installed in a horizontal or vertical position, or placed in a Rack 2U and can be connected to the mains via a wall socket using the cable.
Equipped with EcoControl outlets with surge protection, which reduce energy consumption of the devices in standby mode, the system offers connection options for up to 4 devices. In the event of a power outage, the system continues to operate in battery mode and indicates the fault via a warning signal.
Product Details
- Eaton EL650DIN UPS system
- Free-standing uninterruptible power supply system
- For the secure power supply of a computer and peripheral equipment
- Can be installed horizontally, vertically or in a Rack 2U (optional kit)
- Connection to the mains via wall socket
- USB cable enables connection to the computer
- Suitable software (CD-Rom) included
- EcoControl outlets reduce energy consumption in standby mode
- 4 sockets for PC and other peripherals
- Continues to work in battery mode in the event of a power failure
- Battery operation is indicated by a warning signal
- With practical surge protection
- CE-marked product
- Slim-line design facilitates installation when space is limited
- Easily replaceable battery with extended lifetime
- Automatic battery test and deep-discharge protection
Ordering Information
| General Specifications | |
| Dimensions (L x H x W) | 81 x 263 x 235 mm |
| Weight | 3.6 kg |
| Certificates | IEC/EN 62040-1 IEC/EN 62040-2 CE EAC |
| Product Specifications | |
| Secondary frequency (max.) | 60 Hz |
| Power | 400 W |
| Input | C14 |
| Input voltage (min.) | 161 V |
| Output voltage (max.) | 284 V |
| Secondary frequency (min.) | 50 Hz |
| Battery type | Replaceable sealed lead acid |
| Battery rating | 12 V/7 Ah |
| Output voltage (min.) | 161 V |
| Output voltage range | 184-264 V (adjustable to 161-284 V) |
| Rated input voltage | 230 V Standard (220/230/240 V) |
| Input frequency range | 46-70 Hz |
| Voltage type | AC |
| Voltage | 230 V |
| VA rating | 650 VA |
| Noise level | < 25 dB at 1 metre |
| User interface | LEDs |
| Number of outputs (SCHUKO) | 4 |
| Scope of delivery | UPS system; input cable (1.5 m); user manual; safety instructions |
