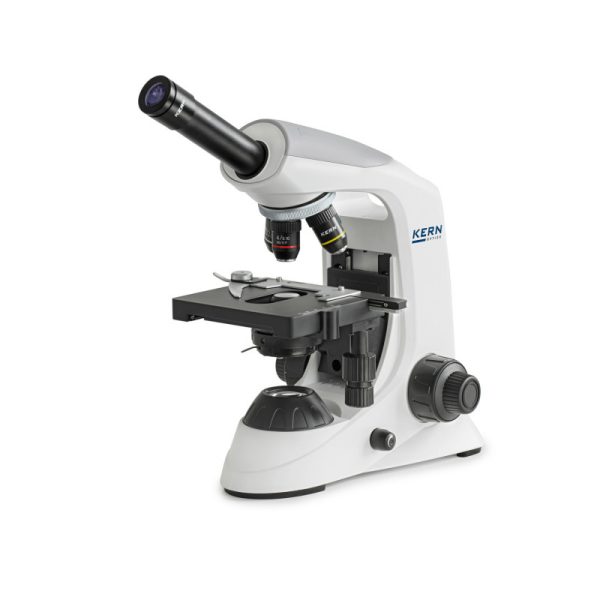

Kern OBE 131 Transmitted Light Microscope
The monocular Kern OBE 131 transmitted-light microscope is ideal for schools, training, laboratories and medical practices. Its high magnification facilitates detailed examination of haematological samples and sediments. The continuously dimmable 3W LED provides optimal illumination of the specimen. In addition, the height-adjustable and thereby focusable 1.25 Abbe condenser with aperture diaphragm guarantees optimal light bundling.
The fully-equipped mechanical stage offers height adjustment through coarse and fine focusing knobs on both sides, ensuring sharp and uninterrupted specimen viewing. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly. Equipped with a 4x revolving nosepiece, the OBE 131 offers precise and fast switching between the different magnification levels.
Product Details
- Kern OBE 131 transmitted light microscope
- Monocular all-round transmitted light microscope
- Ideal for schools, training, labs and medical practices
- Robust and ergonomic design
- Continuously dimmable 3W LED for brilliant illumination
- Height-adjustable and focusable 1.25 Abbe condenser with aperture diaphragm
- Optimal light concentration
- Extra high magnification
- Mechanical stage with coarse and fine adjustment on both sides
- Specimens moved with the help of the coaxial drive
- Practical storage compartment on the back
- Power supply also possible with power bank via USB connection
- Delivery contents: microscope, protective dust cover, eye cups and instructions for use
Applications
- Translucent and thin, high-contrast, low-demanding preparations (e.g. plant tissue, stained cells/parasites)
- Training
- Haematology
- Sediments
- Medical practices
Specifications
- Finite optics (DIN)
- Ocular magnifications: 10 x
- 4x revolving nosepiece
- Eyepiece: HWF 10 x Ø 18.0 mm
- Achromatic objectives: 4 x, 10 x, 40 x, 100 x
- Dimensions: 360 x 150 x 320 mm (W x D x H)
- Input current: AC 100-240 V, 50-60 Hz, 0.3 A
- Output current: DC 5V, 1.0 A
