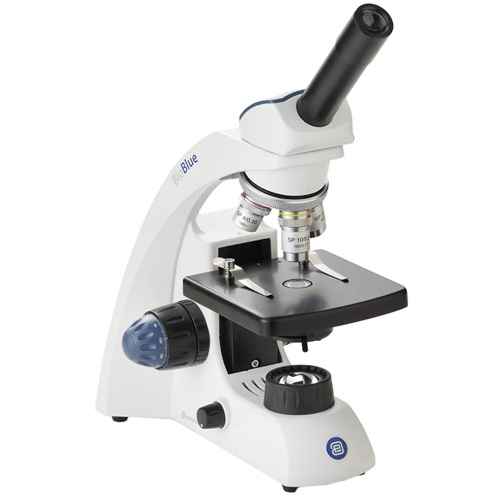

Euromex LED Microscope

Euromex LED Microscope

The Euromex BioBlue BB.4200 and BB.4220 are monocular microscopes with LED illumination that are ideally suited for use in teaching classes and small laboratories. The coaxial coarse and fine adjustment with 0.002 mm graduations give the LED microscope a sharp picture quality. The picture stays centralised even when changing lenses, ensuring optimum illumination at all times.

Product Details

• Monocular LED microscope
• Model: Euromex BioBlue BB.4200 (with standard stage) and BB.4220 (with integrated X-Y stage)
• With 1 watt LED illumination
• Very low heat emission
• Ergonomically placed adjustment buttons minimise fatigue symptoms with prolonged use of the microscope
• Convenient handle for easy transportation
• Wireless operation
• Portable
• Strong aluminium stand with standard or X-Y stage
• 60 hours uninterrupted operation time thanks to integrated AA batteries
• Sharp picture quality
• Picture is centred even when changing lenses
• Suitable for teaching classes, research and small laboratories
• 10 year warranty

Technical Details

• Ocular: wide field eyepiece WF 10x/18 with pointer
• Monocular tube, 45° inclination, 360° rotation, tube length 160 mm
• Ball-bearing nose-piece, suitable for 4 lenses
• Achromatic semi-plan DIN-lenses, 4x N.A.0.10, 10x N.A.0.25 and S40x N.A.0.65 lens
• Coaxial coarse and fine adjustment with 0.002 mm graduations. Knob rotation tension can be adjusted, and has fixed blocking to prevent damage to the lenses and preparations
• Square 120 x 120 mm stage with two stage clips (model BB.4200) or square stage 120 x 120 mm with integrated XY stage (model BB.4220)
• Abbe condenser N.A. 1.25, height adjustable with iris diaphragm and filter holder
• LED illumination, adjustable
• Integrated battery charger for 3 NiMH AA Type, 85-240 volt
• Removable cable with main plug

The Euromex BioBlue LED microscope is supplied with a dust cover in Styrofoam packaging.
